Myson Orion 50 SI / COMPLETE DIAGRAM

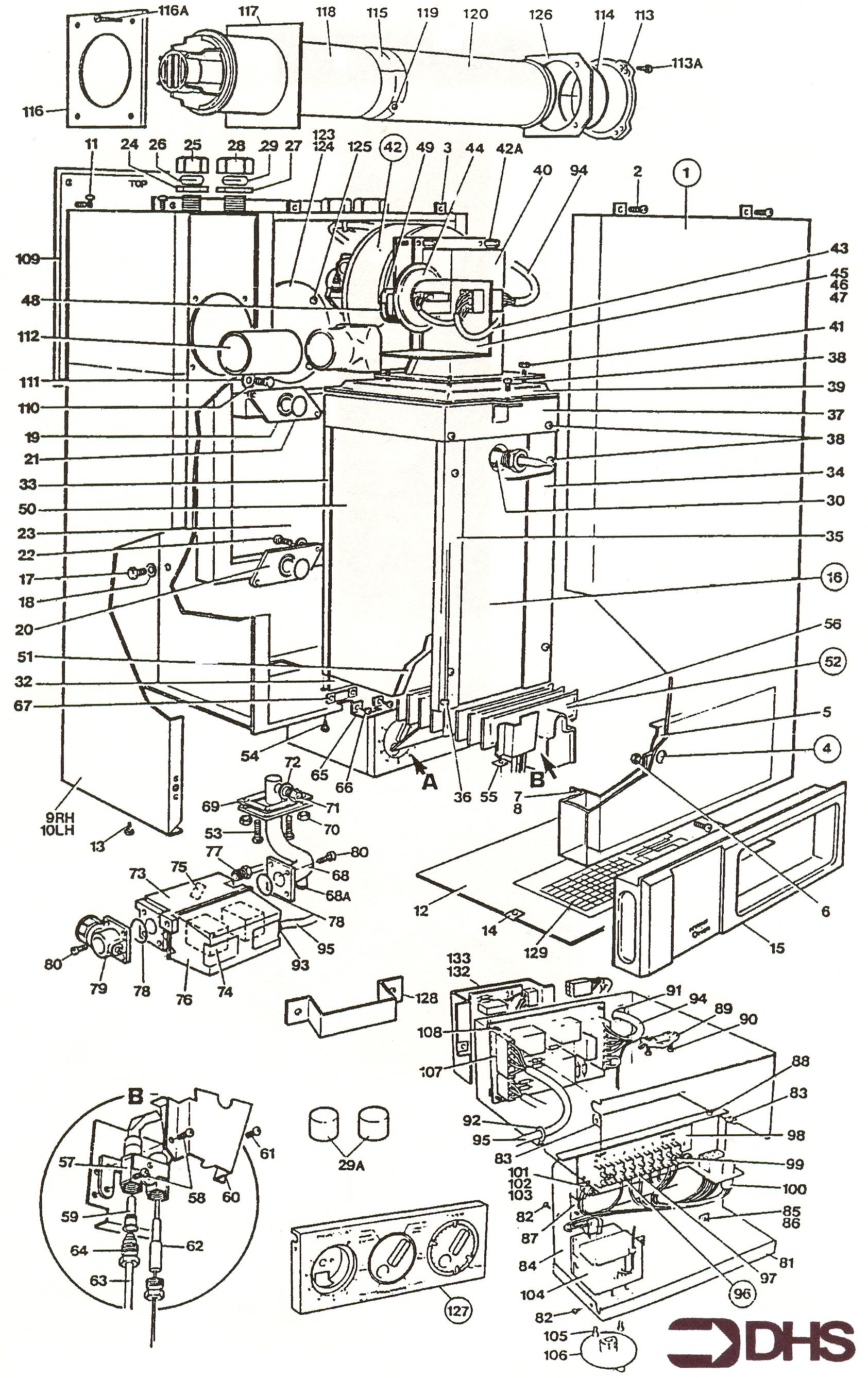

COMPLETE DIAGRAM

Brand: Myson Range: ORION Model: 50 SI

We have a range of spare parts for the Myson Orion 50 SI. Can't find the part you're looking for? You can contact us and a member of our team will be more than happy to help find the part you need.

Installation Manual

All of our boiler manuals are free to download from our boiler manuals section

Installation Manual

Sort by:

Page:

044

MYSON 402A3410 ASSEMBLY PRESSURE SWITCH E.A

Part No: 1176730 MPN: 402A3410

107

MYSON 402A3672 IGN PCB ASSEMBLY APOLLO 60-80

Part No: 1176760 MPN: 402A3672

120C

MYSON 402A1305 INNER TERMINAL ASSEMBLY.

Part No: 1130864 MPN: 402A1305

024

MYSN 402C066 LOCKNUT 22MM -OBSOLETE

Part No: 1130958 MPN: 402C066

028

MYSON 402C417 NUT 28MM

Part No: 1131023 MPN: 402C417

003

MYSN G0704 CAPTIVE NUT NO 10 -OBSOLETE

Part No: 1131460 MPN: G0704

066

MYSON 168S 8 X 1/2" STEEL SCREW

Part No: 1130322 MPN: 168S

29A

MYSN 309C474 BLANKING CAP 28MM -OBSOLETE

Part No: 1130797 MPN: 309C474

118A

MYSN 402A1309 OUTER TERMINAL ASSY - OBSOLETE

Part No: 1130868 MPN: 402A1309

065

MYSN 402C1658 PLATE RETAINING -OBSOLETE

Part No: 1130975 MPN: 402C1658

006/041/07

MYSON 635506 NUT M5 FULL BRASS

Part No: 1131256 MPN: 635506

020

MYSN 233081 BOTTOM MANIFOLD P/TED ASY -OBSOLETE

Part No: 1130491 MPN: 233081

120B

MYSN 402A1304 INNER TERMINAL ASSY. - OBSOLETE

Part No: 1130863 MPN: 402A1304

116

MYSON 402A1325 ASSY OUTER WALL PLATE

Part No: 1130871 MPN: 402A1325

069

MYSON 402C387 GASKET

Part No: 1131022 MPN: 402C387

37 products found
