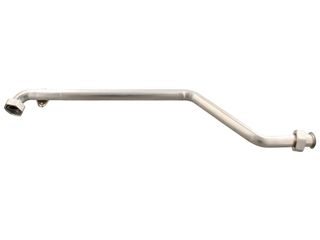

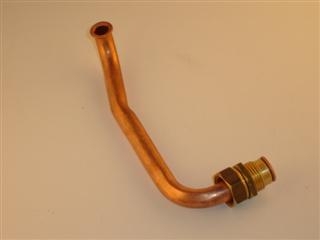

Vokera Pipe Assembly (Page 15)
The water pipework can be separated in to 2 categories. The first would be the pipes that allow an influx of water in to the heating unit. This would include the mains water supply and the water pipework on the wall jig. The second category would be the pipes within the appliance that carry water between the different parts of the unit that require it, such as the pump and diverter valve.
