LEGEND SUPER FIREFRONT / CASING LEGEND ASSY

CASING LEGEND ASSY

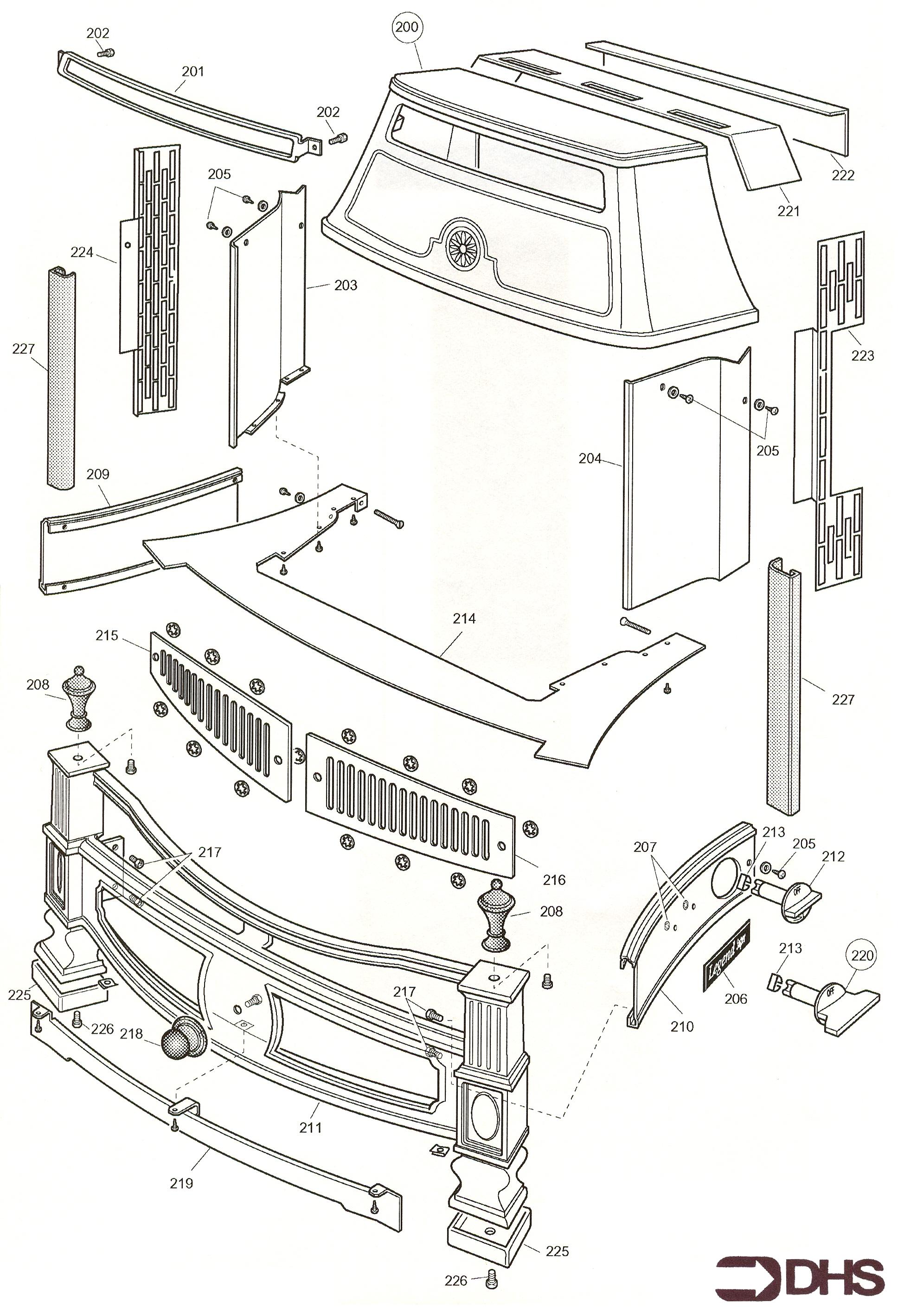

Exploded Diagram for CASING LEGEND ASSY

Sort by:

Page:

POTTERTON 670022 SCREW M5X8 MCHEX POZ SZ

POTTERTON 670022 SCREW M5X8 MCHEX POZ SZ

Part No: 1124405 MPN: 670022

VALOR 787/1051 KNOB ASSEMBLY.

Part No: 1160969 MPN: 787/1051

MAIN 18/942/2131 PLINTH PAINTED

Part No: 1160084 MPN: 18/942/2131

MAIN 90/943/1043 FENDER SIDE RH PAINTED

Part No: 1161350 MPN: 90/943/1043

MAIN 943/7030 GRATE KNOB

Part No: 1161650 MPN: 943/7030

MAIN 70/943/2185 LOUVRE PAINTED

Part No: 1160909 MPN: 70/943/2185

MAIN 943/1104 FRONT TRIM L/H

Part No: 1161632 MPN: 943/1104

MAIN S/223/8 SCREW NO 8X1/2 FL HD

Part No: 1161965 MPN: S/223/8

POTTERTON 788/9898 NAME BADGE.

Part No: 1124509 MPN: 788/9898

MAIN 90/943/1042 FENDER SIDE LH PAINTED

Part No: 1161347 MPN: 90/943/1042

MAIN 943/2102 FENDER

Part No: 1161644 MPN: 943/2102

MAIN 18/964/2995 SIDE GRILLE R/H

Part No: 1160090 MPN: 18/964/2995

MAIN 942/2682 SIDE TRIM

Part No: 1161551 MPN: 942/2682

MAIN 960/2715 SHIELD

Part No: 1161716 MPN: 960/2715

POTTERTON 787HP/1051 HANDICAPPED KNOB ASSY

Part No: 1124507 MPN: 787HP/1051

25 products found
