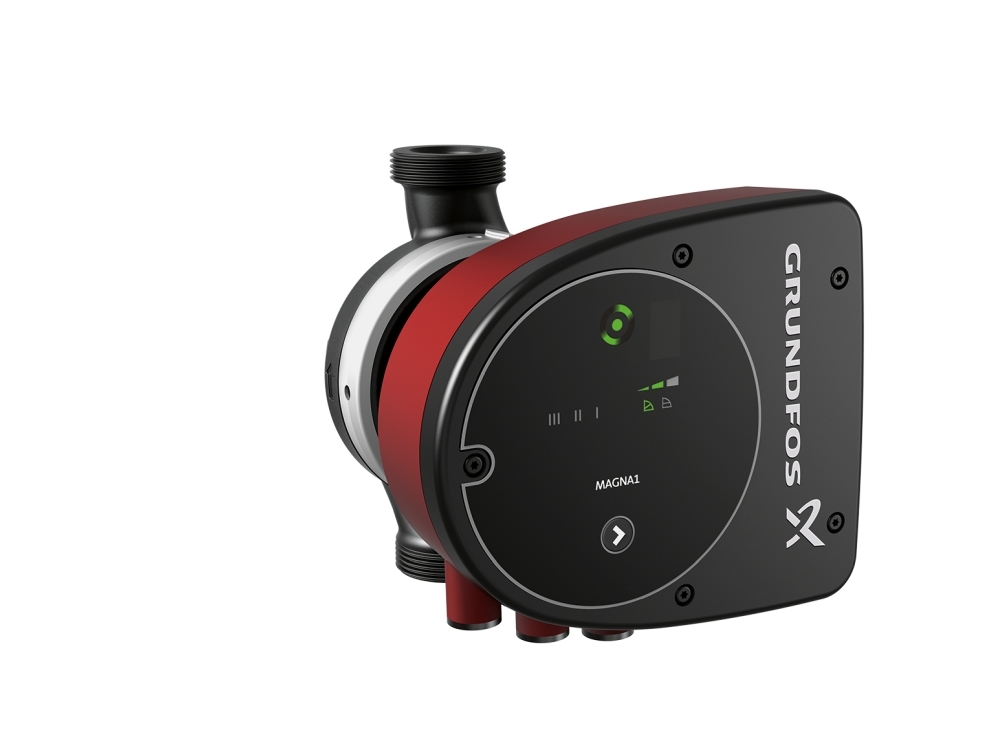

GRUNDFOS MAGNA1 25-40 PUMP 97924153.
The Grundfos 97924153 MAGNA1 25-40 Pump is a high performing circulating pump which complies with strict EuP requirements and it only has features which are important for its core functions. This makes the MAGNA1 pump an ideal replacement for existing UPS pump systems or for use in larger development projects.
The MAGNA1 is designed to circulate liquid in air conditioning & cooling systems, heating systems, domestic hot water systems, ground source heat pump systems and solar-heating systems.
Product specification
Pump
- Maximum operating pressure: 10 bar
- Ambient temperature range: 0°C to 40°C
- Pipe connection: G 1½"
- Pressure rating: PN10
- Port-to-port length: 180mm
- Energy Efficiency Index: 0.22
Liquids
- Pumped liquid: Water
- Temperature range: -10°C to 110°C
- Temperature during operation: 60°C
- Density: 983.2kg/m³
Electrical data
Pump materials
- Voltage: 230V
- Mains frequency: 50Hz
- Power input (P1) 9-56W
- Insulation class: F
- Enclosure class: X4D
- Pump housing: Cast iron
- Impeller: Polymer (Polyethersulfone - PES 30% GF)
The GRUNDFOS MAGNA1 25-40 PUMP 97924153 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
