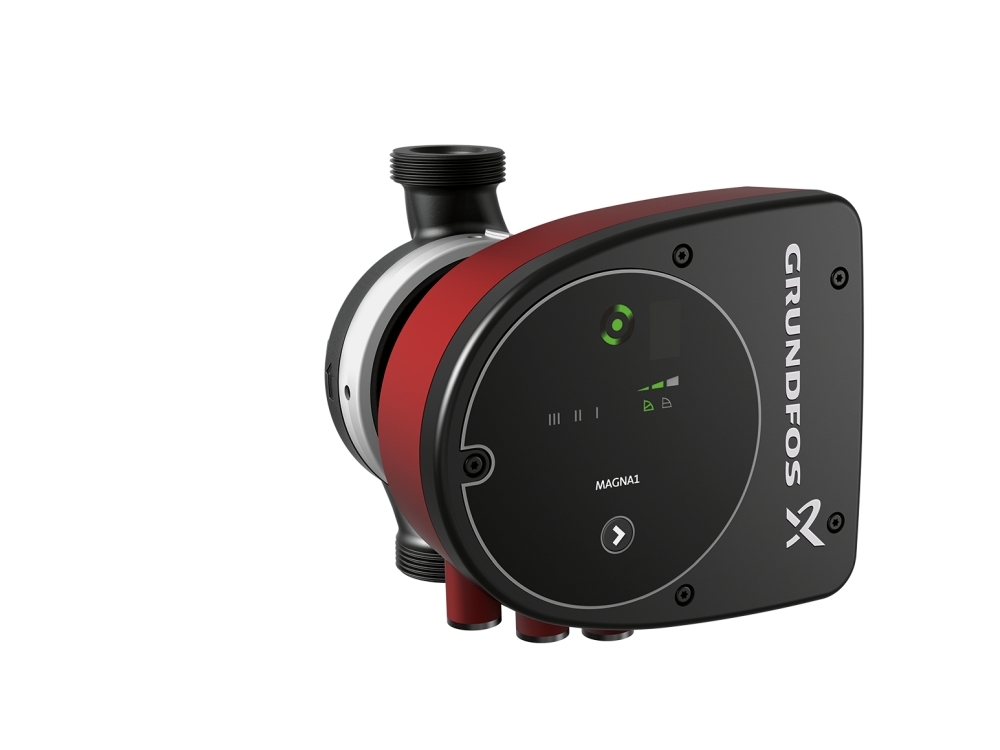

GRUNDFOS MAGNA1 40-80 PUMP 97924176.
The Grundfos MAGNA1 40-80F Pump is a single stage circulator that designed for circulating liquid in a heating system or domestic hot water systems. The MAGNA1 40-80F has an energy efficiency index of 0.23 as well as a low noise level. The Pump is easy to fit and requires no maintenance.
Electrical data
- Power input (P1) 17W to 267W
- Mains frequency: 50Hz
- Rated voltage: 1x 230V
- Enclosure rating: X4D
- Insulation class: F
Installation
- Ambient temperature range: 0°C to 40°C
- Max. Operating Pressure: 10 bar
- Pipe connection: DN40
- Pressure rating: PN6/10
- Port-to-port length: 220mm
Liquid
- Pumped liquid: Water
- Temperature range: -10°C to 110°C
- Temperature during operation: 60°C
- Density: 983.2kg/m³
Materials
- Pump housing: Cast iron (EN-GJL-200 / ASTM A48-200B)
- Impeller: Polyethersulfone (PES 30%GF)
The GRUNDFOS MAGNA1 40-80 PUMP 97924176 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
