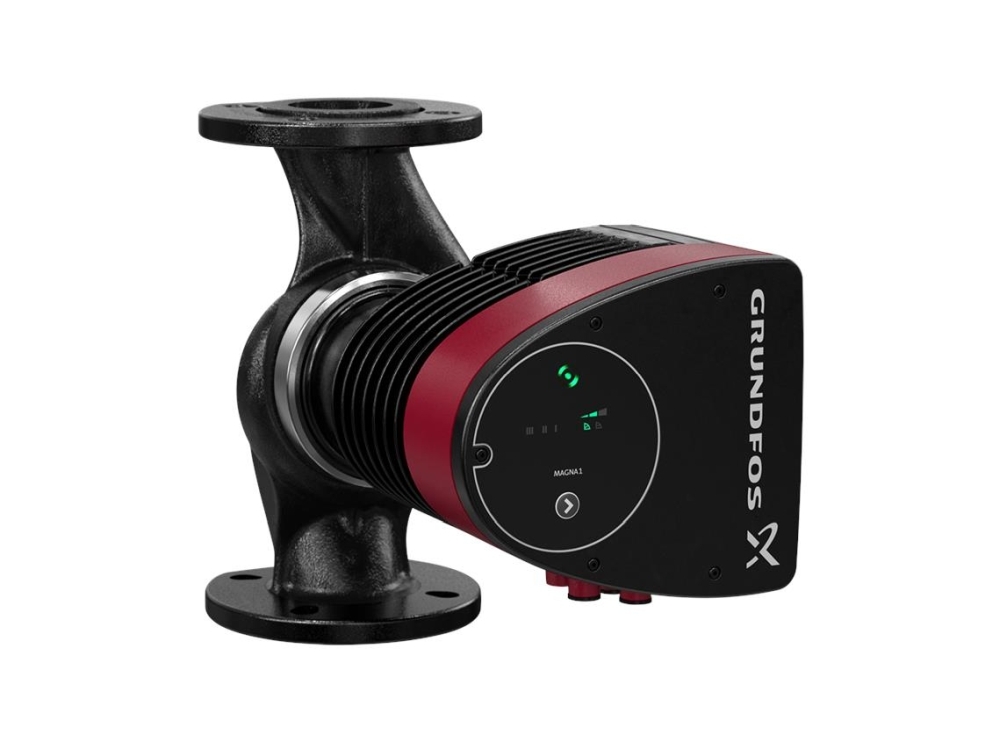

GRUNDFOS MAGNA1 50-60F 240 1X230V PN6/10.
The Grundfos MAGNA1 50-60F Single Stage Pump is a circulator pump which is use to circulate liquid through heating systems or domestic hot water systems. The MAGNA1 50-60F has an energy efficiency index of 0.22 as well as operating with a low noise level. The Pump is easy to fit and has no maintenance requirements.
Electrical data
- Power input (P1) 20.91W to 252W
- Mains frequency: 50Hz
- Rated voltage: 1x 230V
- Enclosure rating: X4D
- Insulation class: F
Installation
- Ambient temperature range: 0°C to 40°C
- Max. Operating Pressure: 10 bar
- Pipe connection: DN50
- Pressure rating: PN6/10
- Port-to-port length: 240mm
Liquid
- Pumped liquid: Water
- Temperature range: -10°C to 110°C
- Temperature during operation: 60°C
- Density: 983.2kg/m³
Materials
- Pump housing: Cast iron (EN-GJL-200 / ASTM A48-200B)
- Impeller: Polyethersulfone (PES 30%GF)
The GRUNDFOS MAGNA1 50-60F 240 1X230V PN6/10 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
