GRUNDFOS MAGNA1 D 32-60 PUMP 97924368.

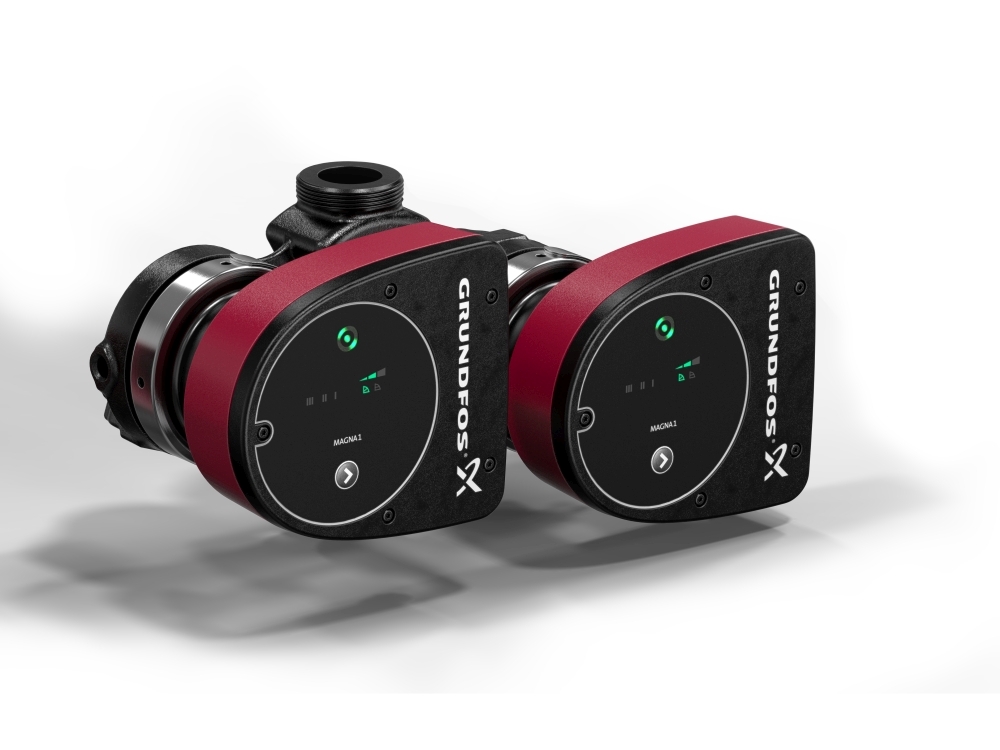

The Grundfos MAGNA1 D 32-60 Circulator Pump is a double pump designed to circulate liquid within a domestic hot water or heating system. The pump offers low noise operation, no maintenance requirements as well as a low life cycle cost.
Electrical data
- Power input (P1) 9W to 111W
- Mains frequency: 50Hz
- Rated voltage: 1x 230V
- Enclosure rating: X4D
- Insulation class: F
Installation
- Ambient temperature range: 0°C to 40°C
- Max. Operating Pressure: 10 bar
- Pipe connection: G 2"
- Pressure rating: PN10
- Port-to-port length: 180mm
Liquid
- Pumped liquid: Water
- Temperature range: -10°C to 110°C
- Temperature during operation: 60°C
- Density: 983.2kg/m³
Materials
- Pump housing: Cast iron (EN-GJL-200 / ASTM A48-200B)
- Impeller: Polyethersulfone (PES 30%GF)
The GRUNDFOS MAGNA1 D 32-60 PUMP 97924368 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
