GRUNDFOS MAGNA1 D 40-60 F PUMP 97924380

Our Part No
2520844
MPN
97924380

We're sorry but this product has now been discontinued by Grundfos Pumps and can no longer be purchased.

Sorry, this part is now obsolete

GRUNDFOS MAGNA1 D 40-60 F PUMP 97924380.

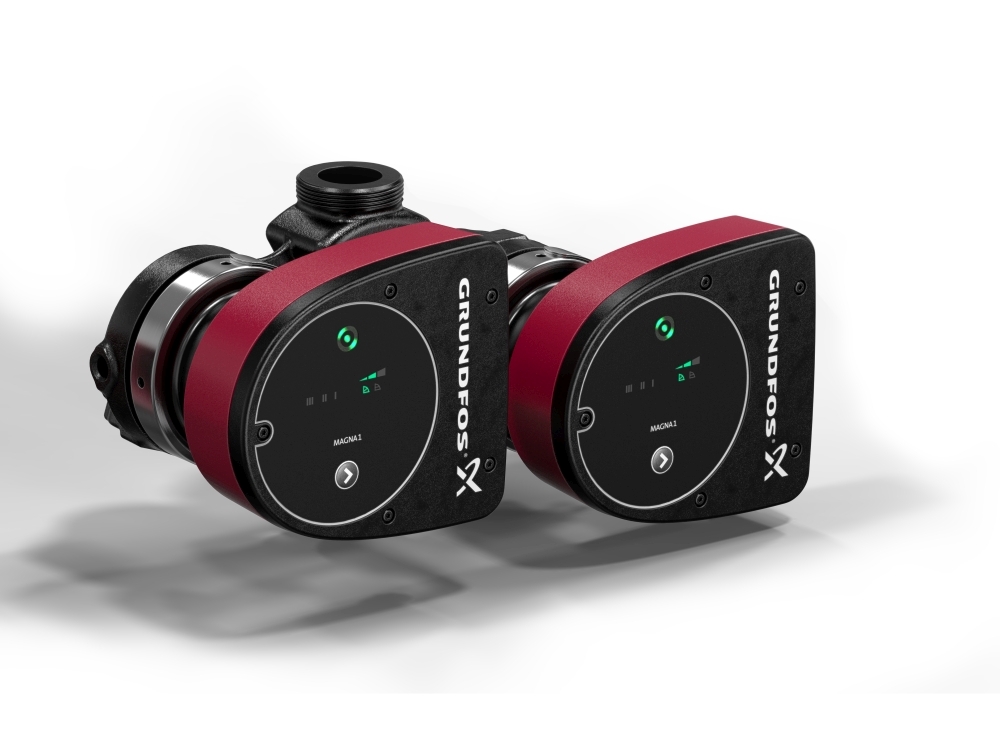

The Grundfos MAGNA1 D 40-60F Circulator Pump is a circulator with two pumps which is designed to circulate liquid through a heating or domestic hot water system. The MAGNA1 D pumps provides low noise operation, no maintenance requirements as well as a low life cycle cost.

Electrical data

  • Power input (P1) 12W to 194W
  • Mains frequency: 50Hz
  • Rated voltage: 1x 230V
  • Enclosure rating: X4D
  • Insulation class: F

Installation

  • Ambient temperature range: 0°C to 40°C
  • Max. Operating Pressure: 10 bar
  • Pipe connection: DN40
  • Pressure rating: PN6/10
  • Port-to-port length: 220mm

Liquid

  • Pumped liquid: Water
  • Temperature range: -10°C to 110°C
  • Temperature during operation: 60°C
  • Density: 983.2kg/m³

Materials

  • Pump housing: Cast iron (EN-GJL-200 / ASTM A48-200B)
  • Impeller: Polyethersulfone (PES 30%GF)

The GRUNDFOS MAGNA1 D 40-60 F PUMP 97924380 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.

Not what you're looking for? Try our unique Spares Finder tool or you can view all Grundfos Pumps products.

For advice on this or any product, please call us on 0330 123 3707, email us at web@dhsspares.co.uk, or see additional ways to contact us here.
