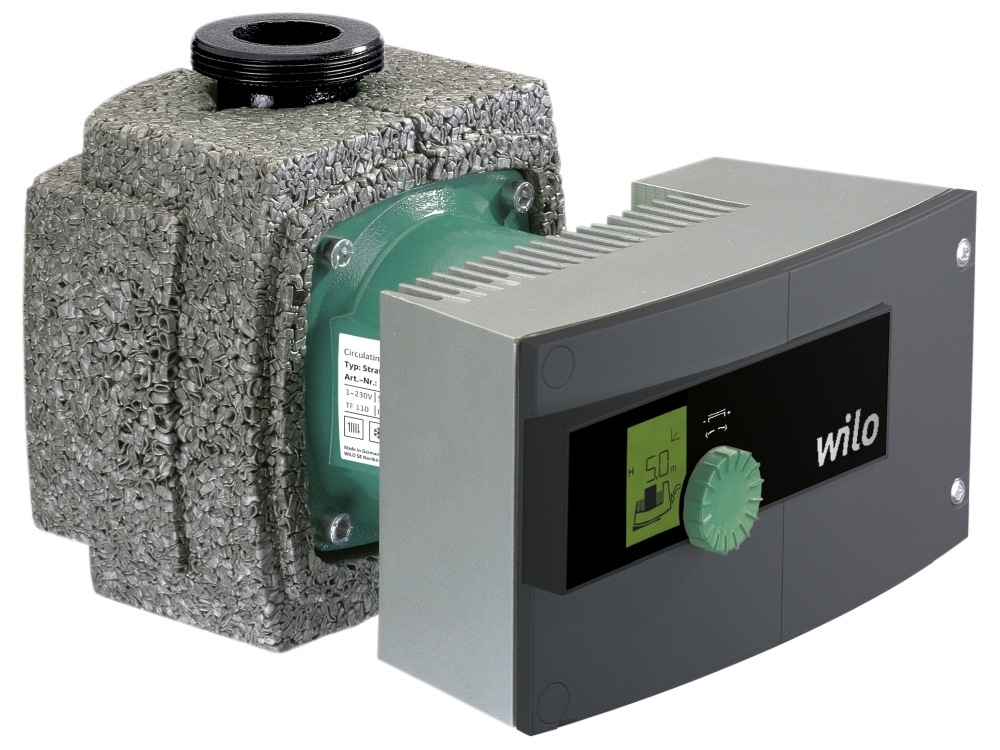

WILO 2090451 STRATOS 30/1-12 (180) PUMP.
The Wilo Stratos 30/1-12 pump is a glandless circulation pump with a threaded connection and an EC motor with automatic power adjustment.
The Stratos 30/1-12 pump offers energy efficiency with the Q-limit function for volume flow, optimised display for easy readability, space-saving installation thanks to its compact design and location dependent LC display and modular concept for connection of all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)
Pump specification
- Max. volume flow (Q): 12m3/h
- Max. delivery head (H) 12m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure: 10 bar
- Pipe connection: G2
- Port-to-port length: 180mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.37 A
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Insulation class: F
Pump Materials
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Cast iron (5.1300, EN-GJL-200)
- Impeller: Plastic (PPE-GF30)
- Bearing: Carbon, metal impregnated
The WILO 2090451 STRATOS 30/1-12 (180) PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
