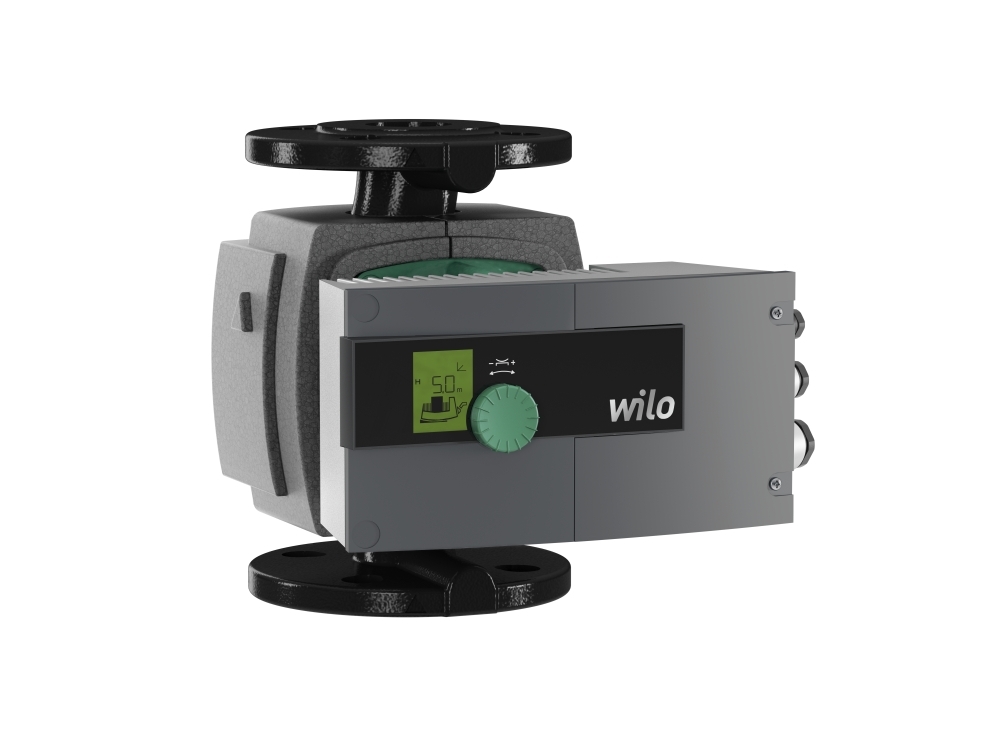

WILO 2090453 STRATOS 40/1-4 1PH PN6/10.
The Wilo Stratos 40/1-4 Pump is a glandless circulation pump with a flange connection, EC motor with automatic power adjustment. The pump is suitable for use with all hot water heating systems, air conditioning systems, closed cooling circuits and industrial circulation systems.
Special features and advantages
- Energy savings through greater system efficiency with Q-limit function. (volume flow limiter)
- Improved Energy Efficiency Index (EEI) ≤ 0.20
- Optimised display for better readability and operation.
- Compact design and location dependent LC display for space-saving installation
- Modular concept for connection of all conventional bus systems (Modbus, BACnet, CAN, LON and PLR)
- Tried and tested quality and reliability
Pump specification
- Max. volume flow (Q): 12.9m3/h
- Max. delivery head (H): 4m
- Nominal delivery head range (m) 1-4m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 16 bar
- Pipe connection size: DN40
- Port-to-port length: 220mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.10 A
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Insulation class: F
Pump Materials
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Cast iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPE-GF40)
- Bearing: Carbon, metal impregnated
The WILO 2090453 STRATOS 40/1-4 1PH PN6/10 is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
