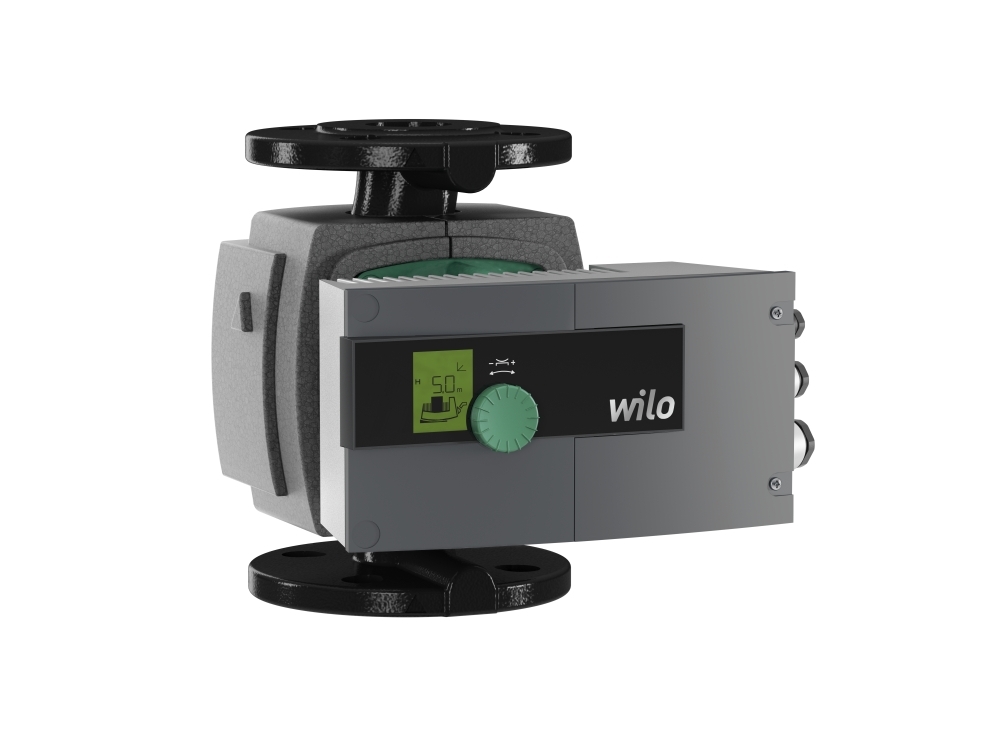

WILO 2090456 STRATOS 50/1-8 50MM FLANGED PUMP.
The Wilo Stratos 50/1-8 Pump is an energy efficient pump with a flange connector and an EC motor with automatic power adjustment.
The pump can be used in a number of applications, such as all kinds of hot water heating systems, air conditioning systems and closed cooling circuits. The Stratos pumps have a modular concept for connections for all conventional bus systems (e.g. BACnet, CAN, LON, PLR and Modbus) along with its compact design and location dependent LC display allows this pump to be installed whilst saving space. Other features include: Optimised display for easy readability, Improved Energy Efficiency Index and Q-limit function for greater system efficiency and energy savings.
Pump specification
- Max. Volume flow (Q): 17 m3/h
- Max. delivery head (H): 8m
- Nominal delivery head range (m) 1-8m
- Energy Efficiency Index (EEI): 0.20
- Maximum operating pressure: 10 bar
- Pipe connection: DN 50
- Port-to-port length: 240mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.37 A
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Insulation class: F
Pump Materials
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Cast iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPE-GF40)
- Bearing: Carbon, metal impregnated
The WILO 2090456 STRATOS 50/1-8 50MM FLANGED PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
