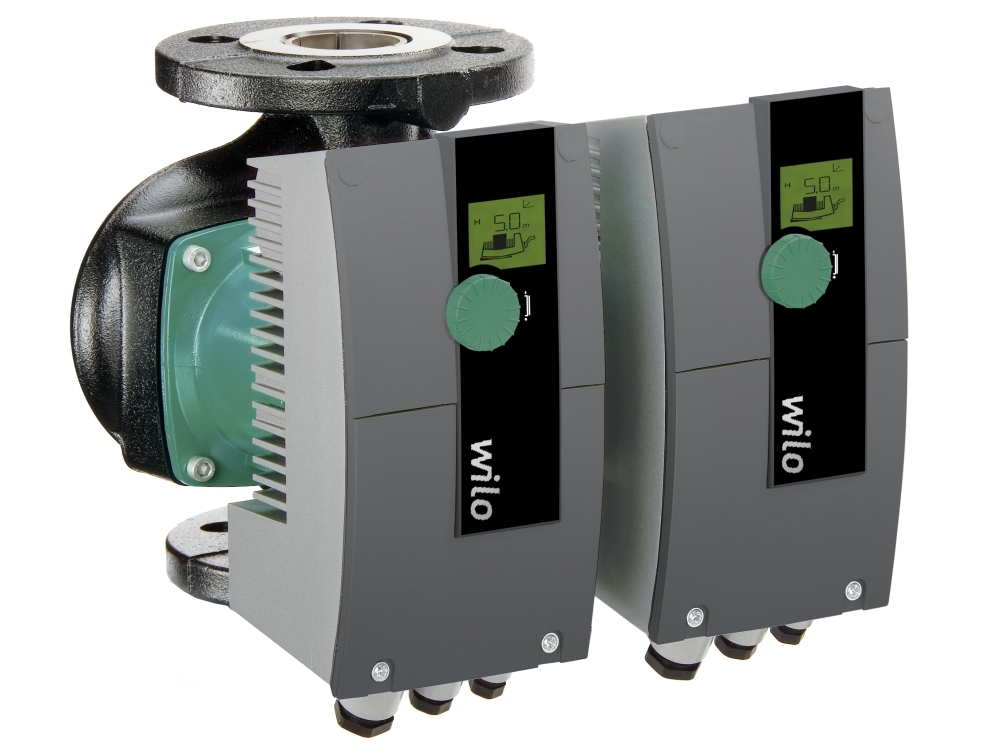

WILO 2090466 STRATOS-D 50/1-9 1PH PN6/10.
The Wilo Stratos-D 50/1-9 double pump is an electronically controlled, glandless high-efficiency double pump which have built-in power control, an ECM synchronous motor and offers expandability with optional IF-modules which allows for building automation and dual pump management.
The Stratos-D pump can be used in a range of HVAC systems including; hot-water heating systems, air-conditioning systems, closed cooling circuits and industrial circulation systems.
Pump Specification
- Max. volume flow (Q): 38.7 m3/h
- Max. delivery head (H): 9m
- Energy Efficiency Index (EEI): 0.23
- Max. operating pressure (PN): 10 bar
- Pipe connection: DN 50
- Port-to-port length: 280mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.88 A
- Insulation class: F
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
Pump Material
- Shaft: Stainless steel (1.4028, X30Cr13)
- Pump housing: Cast iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPS-GF40)
- Bearing: Carbon, antimony impregnated
The WILO 2090466 STRATOS-D 50/1-9 1PH PN6/10 is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
