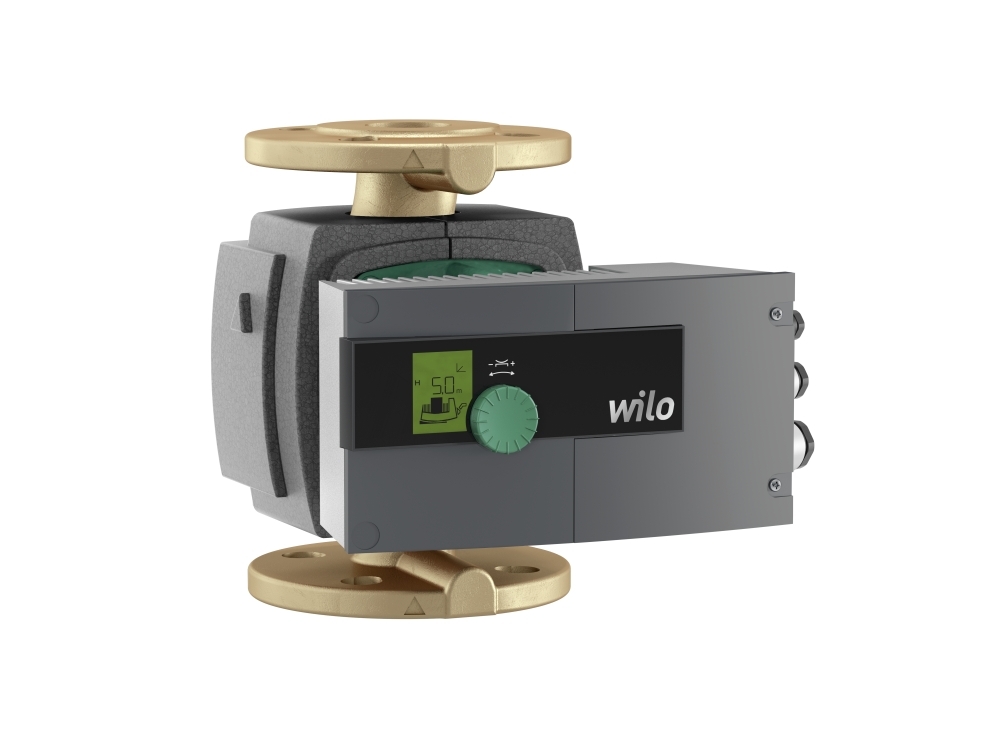

WILO 2090472 STRATOS-Z 40/1-8.
The Wilo Stratos-Z 40/1-8 Pump is a glandless circulating pump which has an EC motor with automatic power adjustment. The Stratos-Z pump is used for a range of HVAC applications including, domestic hot water circulation, hot water heating systems, air conditioning, closed cooling circuits and industrial circulation systems.
The Stratos-Z pump can be extended with optional IF-modules to work with building automation and has connection capabilities for all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)
Pump Specification
- Max. volume flow (Q): 17 m3/h
- Max. delivery head (H): 8 m
- Energy Efficiency Index (EEI): 0.20
- Pipe connection: DN 40
- Port-to-port length: 220mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 0.20 A
- Insulation class: F
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
Pump Material
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Bronze (CC499K, CuSn5Zn5Pb2-C)
- Impeller: Plastic (PPS-GF40)
- Bearing: Carbon, antimony impregnated
The WILO 2090472 STRATOS-Z 40/1-8 is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
