WILO 2090474 STRATOS Z 50/1-9 1PH

Our Part No
1975056
MPN
2090474

We're sorry but this product has now been discontinued by Wilo and can no longer be purchased.

Sorry, this part is now obsolete

WILO 2090474 STRATOS Z 50/1-9 1PH.

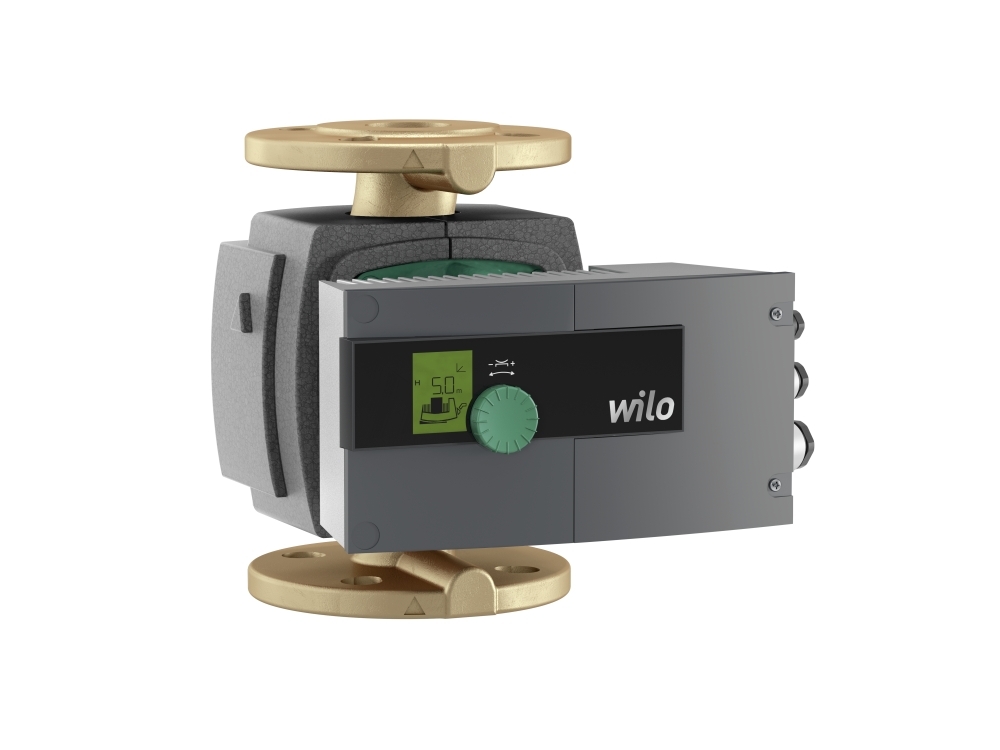

The Wilo Stratos-Z 50/1-9 Pump is a glandless circulating pump which has an EC motor with automatic power adjustment. The Stratos-Z pump is used for a range of HVAC applications including, domestic hot water circulation, hot water heating systems, air conditioning, closed cooling circuits and industrial circulation systems. The pump can also be extended with optional IF-modules to work with building automation and has connection capabilities for all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR).

Pump Specification

  • Max. volume flow (Q): 27.1 m3/h
  • Max. delivery head (H): 9 m
  • Energy Efficiency Index (EEI): 0.20
  • Pipe connection: DN50
  • Port-to-port length: 280mm

Motor Data

  • Mains connection: 1~230 V, 50/60 Hz, 0.35 A
  • Insulation class: F
  • Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
  • Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
  • Electromagnetic compatibility: EN 61000-6-2

Pump Material

  • Shaft: Stainless steel (1.4122, X39CrMo17-1)
  • Pump housing: Bronze (CC499K, CuSn5Zn5Pb2-C)
  • Impeller: Plastic (PPS-GF40)
  • Bearing: Carbon, antimony impregnated

The WILO 2090474 STRATOS Z 50/1-9 1PH is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.

Not what you're looking for? Try our unique Spares Finder tool or you can view all Wilo products.

For advice on this or any product, please call us on 0330 123 3707, email us at web@dhsspares.co.uk, or see additional ways to contact us here.
