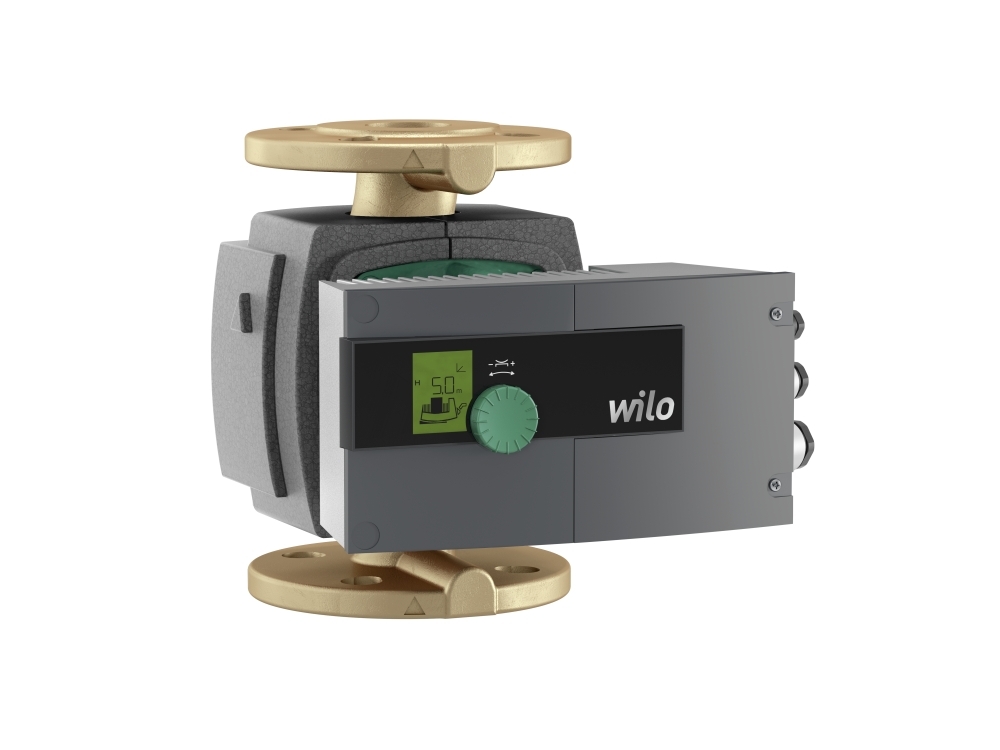

WILO 2152257 STRATOS-Z 65/1-12 PN6/10 PUMP.
The Wilo Stratos-Z 65/1-12 Pump is a glandless circulation pump with EC motor and integrated automatic power adjustment, motor protection with trip electronics and can extend its functionality with optional IF-module for building automation.
The pump can be used for all types of domestic hot water circulation systems, air conditioning, closed cooling circuits and industrial circulation systems.
Pump Specification
- Max. volume flow (Q): 45 m3/h
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 10 bar
- Pipe connection: DN 65
- Port-to-port length: 340mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz
- Rated power P2: 0.65 kW
- Power consumption P1 min: 38 W
- Power consumption P1 max: 800 W
- Insulation class: F
- Interference resistance: Residential area (C1) / EN 61800-3;2004+A1;2012
- Emitted interference: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Min. Speed: 950 rpm
- Max. Speed: 3300 rpm
- Protection class motor: IPX4D
- Integrated motor temperature protection: Integrated
- Speed control: Frequency converter
Pump Material
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump Housing: Bronze (CC499K, CuSn5Zn5Pb2-C)
- Impeller: Plastic (PPS-GF40)
- Bearing: Carbon, antimony impregnated
The WILO 2152257 STRATOS-Z 65/1-12 PN6/10 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
