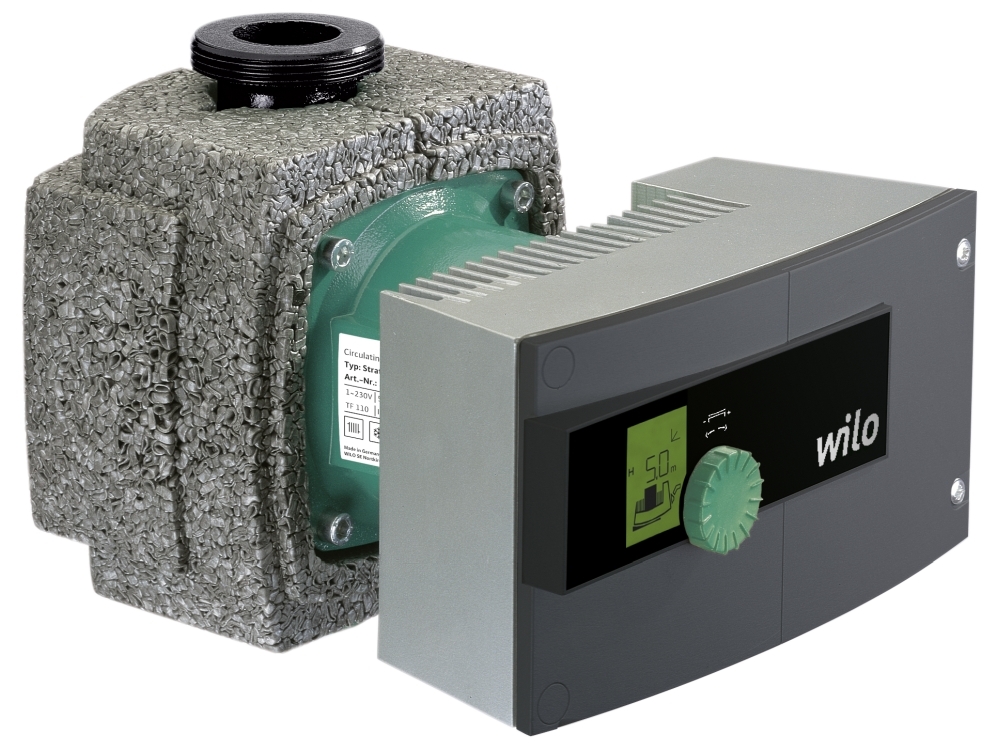

WILO 2103616 STRATOS 30/1-10 (180) PUMP.
The Wilo Stratos 30/1-10 Pump is a glandless circulation pump with an EC motor and automatic power adjustment. The pump is used for all types of hot water heating systems, air conditioning systems, closed cooling circuits and industrial circulation systems.
The Stratos pump offers motor protection with trip electronics, extension of functionality with optional IF-module for building automation.
Pump specification
- Max. volume flow (Q): 8 m3/h
- Max. delivery head (H): 10m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 10 bar
- Pipe connection: G 2
- Port-to-port length: 180mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.30 A
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Insulation class: F
Pump Material
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump Housing: Cast iron (5.1300, EN-GJL-200)
- Impeller: Plastic (PPE-GF30)
- Bearing: Carbon, metal impregnated
The WILO 2103616 STRATOS 30/1-10 (180) PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
