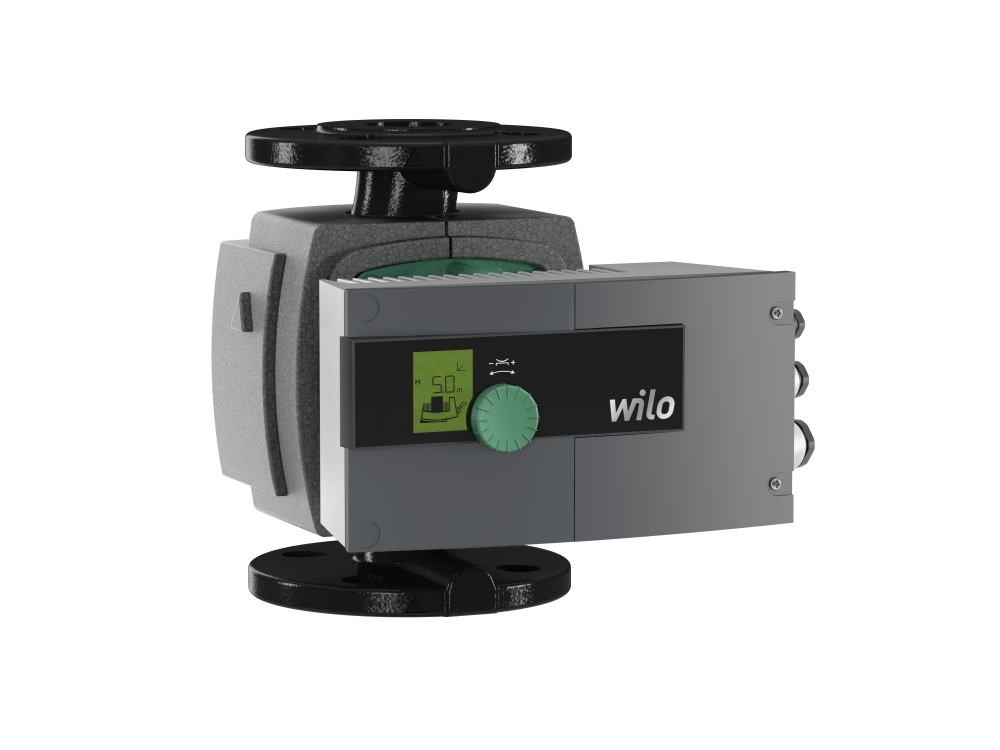

WILO 2103618 STRATOS 40/1-10 PUMP.
The Wilo Stratos 40/1-10 Pump is a glandless high energy efficient pump with a flange connection, EC motor with automatic power adjustment and can be used in a range of applications including: All kinds of hot-water systems, air-conditioning systems, closed cooling circuits and industrial circulation systems.
Special features and advantages
- Q-Limit function (volume flow limiter) allows for energy savings through greater system efficiency
- Improved Energy Efficiency Index (EEI) ≤ 0.2
- Optimised display for better readability
- Space saving compact design and location dependent LC display
- Modular concept for connection to conventional bus systems (Modbus, BACnet, CAN, LON and PLR)
Pump specification
- Max. volume flow (Q): 11.5 m3/h
- Max. delivery head (H) 10m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure: 10 bar
- Pipe connection: DN40
- Port-to-port length: 220mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 1.30 A
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
- Insulation class: F
Pump Materials
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Cast iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPE-GF30)
- Bearing: Carbon, metal impregnated
The WILO 2103618 STRATOS 40/1-10 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
